Machine - Powered by German Engineering

Expertise in Ultra High Pressure Water jetting


Standard
Gantry Model
X-Axis

Y-Axis

G3015
3 Mtr
1.5Mtr
G3020
3 Mtr
2 Mtr

Economy
Cantilever Model
X-Axis

Y-Axis

C1010
1 Mtr
1Mtr
C2513
2.5 Mtr
1.3 Mtr

We Also Make
Customized Model

Aquajet Machine Tool design and manufacture CNC water jet cutting machine with an exposure to German Engineering.

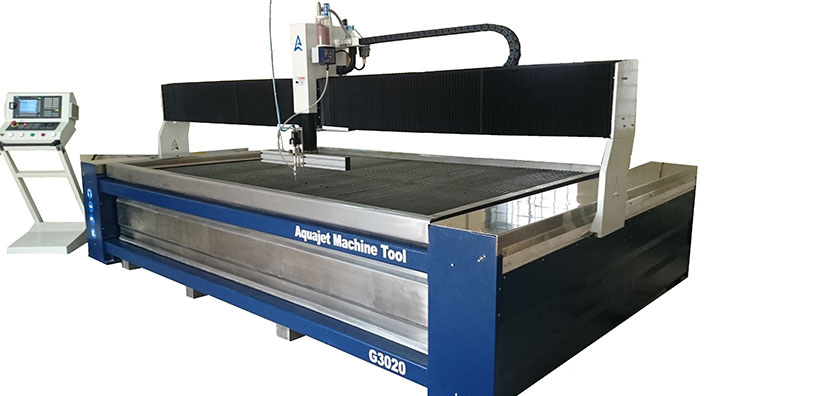

Aquajet Machine tool offers various machine models ranging from 1mtr x 1 mtr to 3mtr x 6 mtr. The most popular Gantry models are G3020 and G3015 which come with single or multiple heads.

Also we make economical cantilever mode C1010 and C2513.

Apart from the standard machine we also design and manufacture customized model according to customer requirement.

Both 3 axis and 5 axis systems available to cater to wide range of applications in various industries.

Technical Data:

Construction: Gantry / Cantilever
Frame: Rigid Welded Structure
Cutting Table/Tank: Stainless Steel

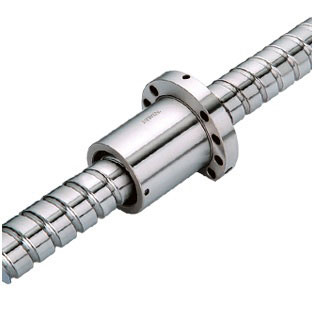

Motion System: Ballscrew

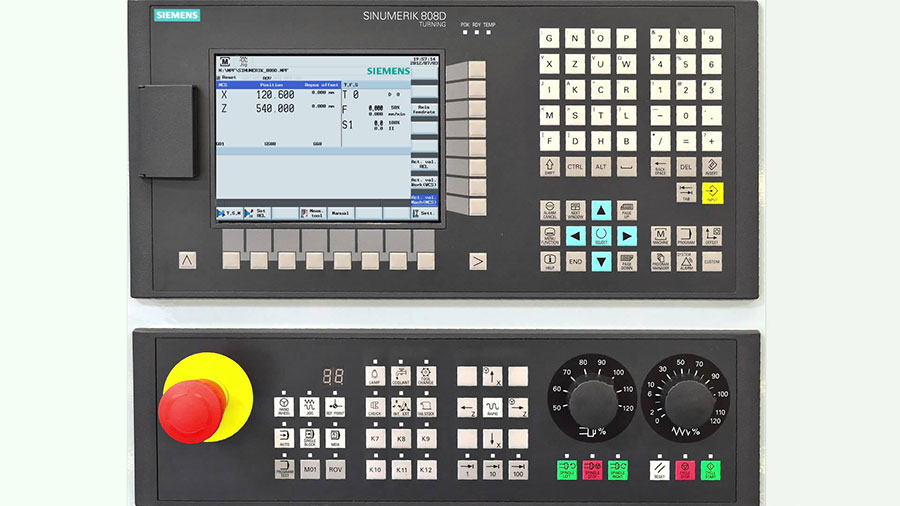

CNC control system: Siemens

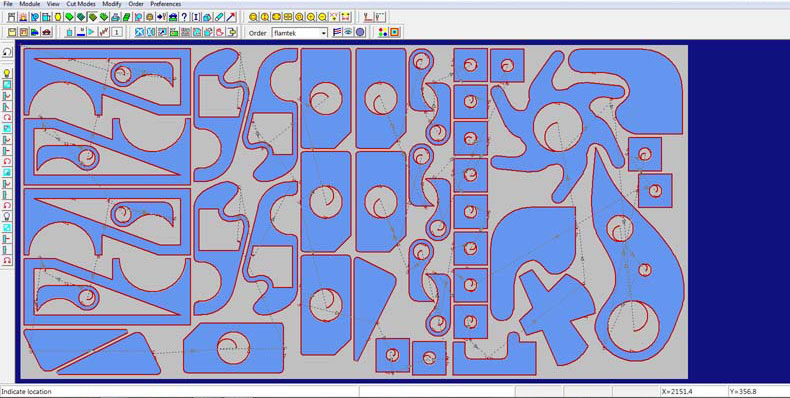

CAM Software: Lantek / Most2D / Igems
Axes Travel Speed: up to 15 m/min
Maximum Table Load: up to 1500 kg/m2
Positioning Accuracy: ± 0.050 mm/m
Repetition Accuracy: ± 0.050 mm
