Ecotron
Model

Power
(HP)

Working Pressure
(Bar)
Flow Rate
(l/min)

40.22
30
4000
2.3
40.30
40
4000
3.1
40.37
50
4000
3.8
40.45
60
4000
4.3
Intensifier BFT
Filter
Touch panel BT
Download Brochure

We use BFT pressure pumps in our system. BFT (previously known as BHDT) is a technologically qualified supplier and manufacturer of high-pressure systems and high-pressure components for Waterjet cutting. BFT pumps are manufactured at the highest technological standard in Austria.

As standard we offer BFT Pump model – ECOTRON with our machine. Also other BFT pump models SERVOTRON & HYTRON can be offered.

The basic design of this Ecotron includes a complete hydraulic drive unit with oil/air or water cooler, high pressure intensifier, accumulator and bleed down valve. The operating pressure is controlled by proportional valve and continuously adjustable via the touch panel between 500 and 4000 bar.

For More Informaton - www.bft-pumps.com

Key features :

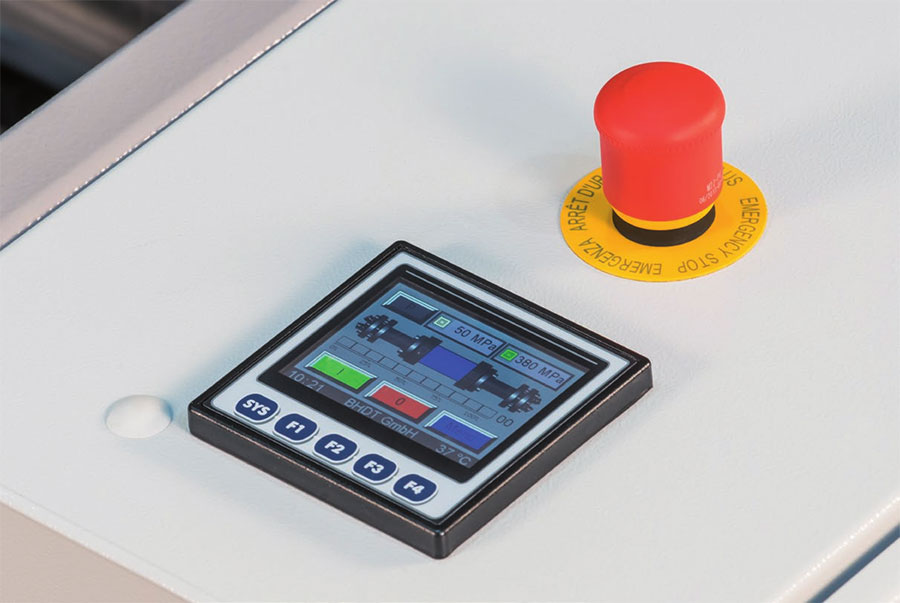

Pressure Adjustment - Electronic pressure adjustment via proportional valve. At the operating panel two different operating pressures (piercing and cutting pressure) are adjustable.

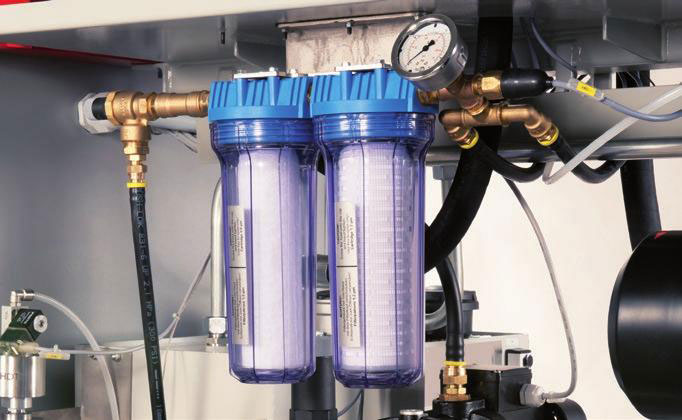

Feed water Filter - The fitted pre-filtering unit with 5 μm and 1.2 μm filters guarantees optimum feed water supply

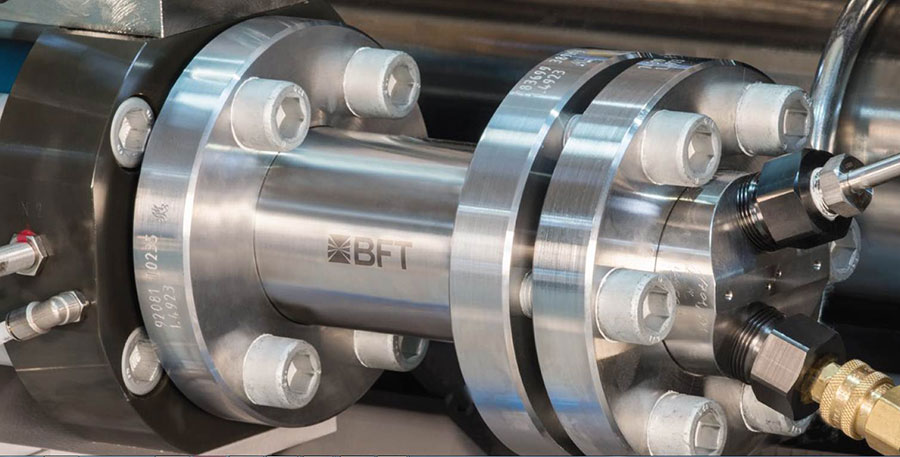

Intensifier - The high pressure components in the intensifier are characterized by a long life expectancy. Wearing parts like seals and check valves can be replaced quickly and easily

Accumulator - Depending on the flow rate of the pump, the integrated accumu¬lator has a large volume of up to 2.49 liters. This reduces pressure fluctuations to a minimum and thus prevents wear on the high pressure system
